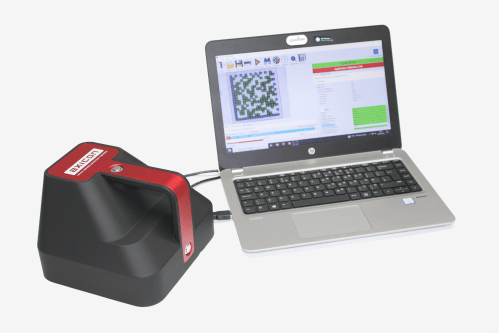

Axicon 15500 Barcode Verifier

The Axicon 15500 barcode verifier is designed to read both linear and two dimensional
matrix barcodes simultaneously. All the symbols seen in its field
of view are verified individually, and the user simply selects each barcode
in turn to see the specific results. Its configuration means it can read small
barcodes with an x-dimension down to 0.240mm (9.4 mils) for linear and
0.360mm (14.2 mils) for 2D codes. The field of view – 95 mm by 70 mm (3.75” by 2.75”) – is the world’s largest
for a handheld 2D barcode verifier. Linear and 2D barcodes are verified in
accordance with the appropriate ISO/IEC standard, with linear barcodes
being sampled ten times from top to bottom.
